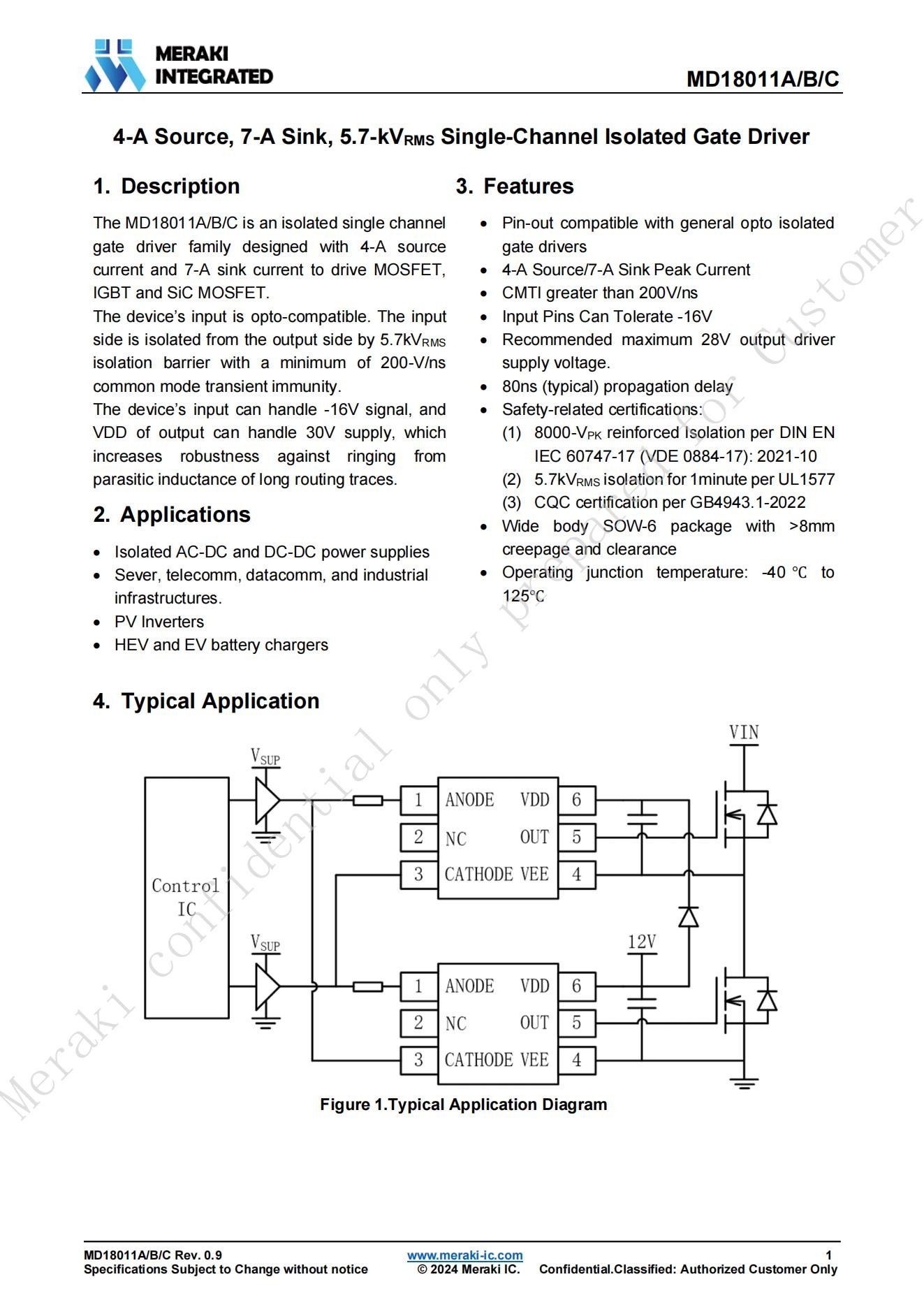

MD18011
MD18011
4-A Source, 7-A Sink, 5.7-kVrms Single-Channel Isolated Gate Driver

? Isolated AC-DC and DC-DC power supplies

? Sever, telecomm, datacomm, and industrial infrastructures.?

? PV Inverters?

? HEV and EV battery charger

詳情介紹：

? Pin-out compatible with general opto isolated gate drivers?

? 4-A Source/7-A Sink Peak Current?

? CMTI greater than 200V/ns?

? Input Pins Can Tolerate -16V?

? Recommended maximum 28V output driver supply voltage.

? 80ns (typical) propagation delay?

? Safety-related certifications:?

(1) 8000-VPK reinforced Isolation per DIN EN IEC 60747-17 (VDE 0884-17): 2021-10

(2) 5.7kVRMS isolation for 1minute per UL1577?

(3) CQC certification per GB4943.1-2022?

? Wide body SOW-6 package with >8mm creepage and clearance?

? Operating junction temperature: -40 ℃ to 125℃
